JIS Standard Pumps

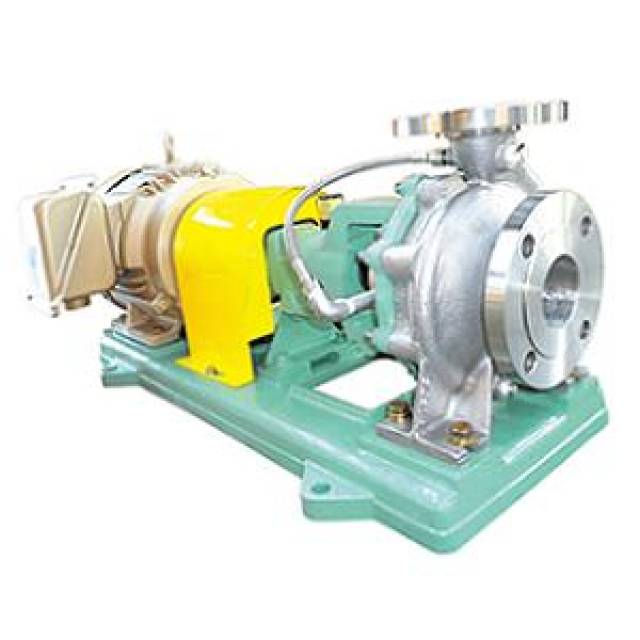

Volute Pump (HAS)
Enquiry Item
- Process conforming to ISO2858 (JIS B 8313),16bar.
- Foot supported Back-pull out type for easy maintenance.
- High efficiency and cost savings.
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Materials
Stainless Steel SCS13/SCS14/SCS16
Other specific materials.
SCS23, Hastelloy, Duplex Stainless Steel
Temperature
-10ºC∼119ºC
Max.Pressure
1.6MPa
Shaft Seal
Gland packing.
Self and external flushing type.
Single mechanical seal.
Double Mechanical Seal.
Additional Special Mechanical Seal may be installed on request.
Bearing
Ball bearing (Oil bath system).

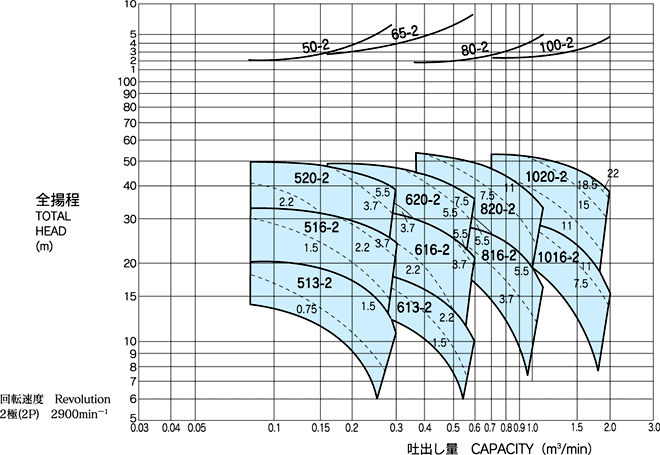

Pump selection tables are based on pumping liquid with specific gravity of 1.0 and viscosity of 1.0mPa·s.
Motor output (kW) is shown with dotted lines.
