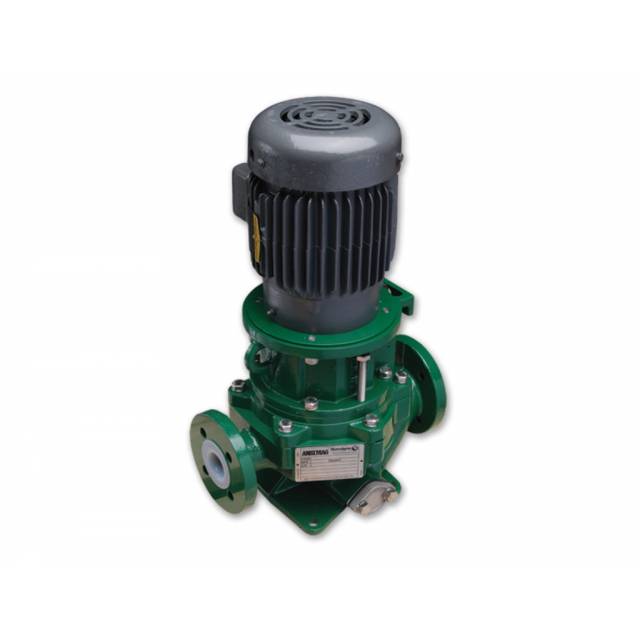

Vertical Sealless Magnetic Drive ETFE Lined Pump (KV)
Enquiry Item
ASME / ANSI B 73.2 vertical standard chemical process sealless magnetic drive non-metallic centrifugal end suction pump.
This ASME / ANSI B73.2 vertical standard pump covers a wide range of sizes and includes standard external dimensions so that pumps manufactured by other suppliers are dimensionally interchangeable with highly reliable ANSIMAG sealless magnetic drive pumps without changing piping or baseplates. Our sealless magnetic drive pumps meet standard design specifications and materials of construction.
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Metric 50 Hz
- Heads to 69 m
- Flows to 59 m3/hr
- Maximum Motor Power 22 kW
- Temperature Range -30 to 120°C
- Maximum Case Working Pressure 19.3 kg/cm2
- Hydrotest Pressure 30 kg/cm2
- Maximum Viscosity 260 centistokes
- Motor Details NEMA, IEC
- Solids Range to 40%
- Mounting Configuration : Vertical close coupled
- Number of available hydraulics. : 3
- Available Flanges : ISO PN16 JIS 10
- Carbon Fiber Reinforced ETFE
- Glass Fiber Reinforced PFA (impeller parts)
- ETFE or PFA lined ductile iron (casing)
