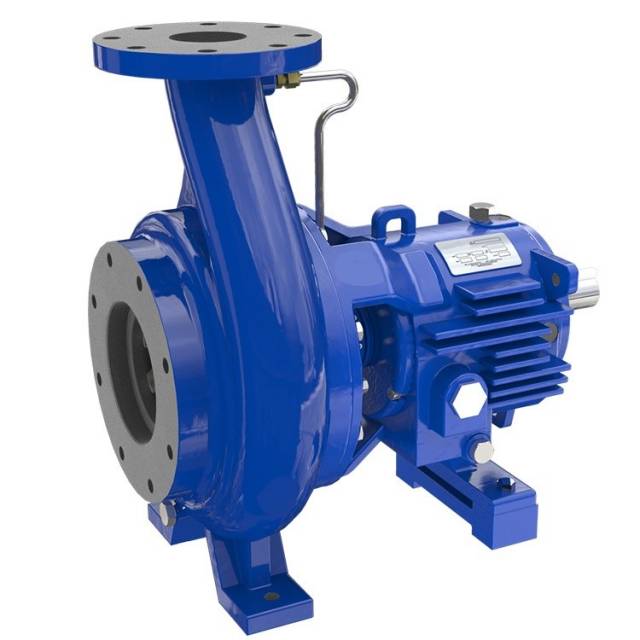

ANSI / ASME B73.1 Process Pump

Operation limits

Maximum Pressure up to 26 bar (375 psig)

Temperature -45 to 315 °C (-50 to 600 °F)

Discharge flanges 1'' to 8''

Applications Chemical & Petrochemical, Power Generation, Oil & Gas, Water Treatment, Mining and General Industries such as: Steel Industry, Automotive, Agriculture, Tank Farm, Pulp and Paper, Food Processing, Pharmaceuticals, Textile, among others.

SPECIFICATIONS

• Single stage, horizontal centrifugal pump
• Radially split casing with flanged connections
• Horizontal end suction and top discharge on the center line
• Enclosed impeller
• Clock-wise rotation (viewed from coupling end)
• Foot mounted
• Oil lubricated
• Quick ship program

Low flow, high head design model available: CPP-L

DESIGN FEATURES

• ANSI / ASME B73.1 standard
• Back pull-out design for ease of maintenance
• Standard or large bore stuffing box selection allows for use of packing

Also available:

• Close coupled assembly
• Options for high and low temperatures
• C-Frame (for proper alignment and better seal life)

CONSTRUCTION MATERIALS

Standard materials:

• All Ductile Iron
• Ductile Iron / Stainless Steel (CF8M)
• All 316 Stainless Steel (CF8M)

Also available upon request:

• Alloy 20, Hastelloy and other materials
• 150# 300# RF or FF flanges per material allowances
• Heavy duty solid SS shaft standard for minimum deflection
• Zirconium

Standard steel, Non Metallic, PIP and other base plate designs available
