ANSI / ASME B73.1 Process Pump

Operation limits

Maximum Pressure up to 375 psi (26 bar)

Temperature up to 700 °F (371 °C)

Discharge flanges 1" to 8"

Applications petrochemical, oil & gas, steel industry, automotive, agriculture, tank farms, pulp and paper, chemical, semiconductor, food processing, power generation, pharmaceuticals, water treatment, pipeline, general industries, textile, mining.

SPECIFICATIONS

Designed to meet your most difficult applications with a state-of-the-art open impeller, CD4MCu wetted parts as standard and a heavy-duty Power Frame.

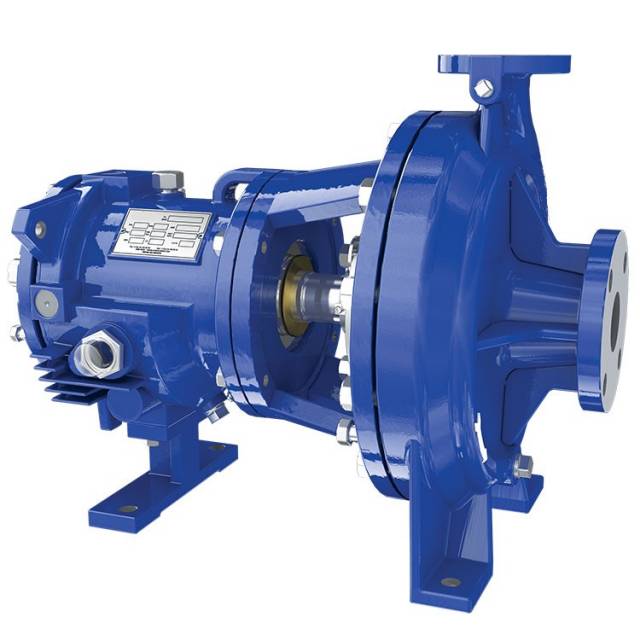

• Horizontal, overhung, single stage, end suction ANSI process pump
• Foot mounted, back pull-out design for ease of maintenance
• Dimensional interchangeability with most common ANSI/ASME B73.1 pump manufacturers

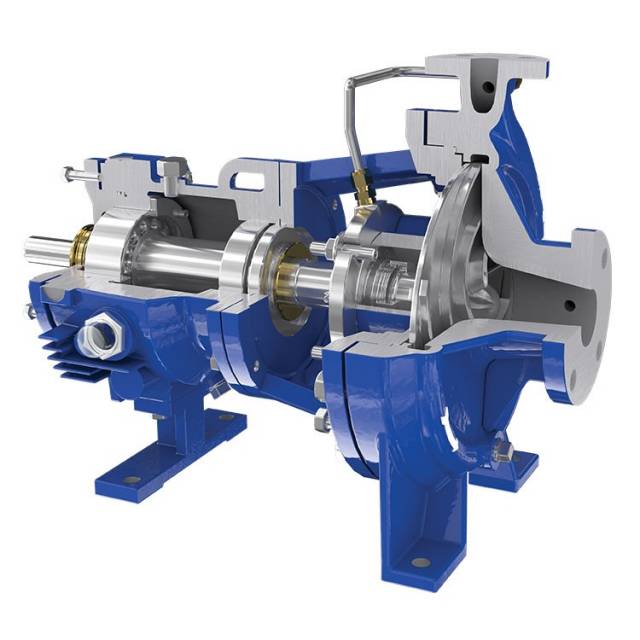

• Open impeller design allows handling of solids in suspension. The impellers are locked onto the shaft by threads and sealed with an O-ring
• External impeller adjustment sets impeller quickly and accurately without the need for special tools
• Machined flat surface suitable for use with magnetic mount vibration probe
• Double row, angular contact thrust bearings minimize axial shaft end-play thus maximizing mechanical seal life
• A robust solid shaft with outstanding L3/ D4 for low vibration and increased mechanical seal life (shaft sleeves are available as an option)
• INPRO VB45-S^TM labyrinth bearing isolators to avoid bearing contamination
• Lubrication:
  • Oil bath lubrication as standard, with option for grease and oil mist lubrication
  • Large capacity oil sump and finned housing provide superior cooling
  • Optional finned oil cooler

OPTIONAL FEATURES

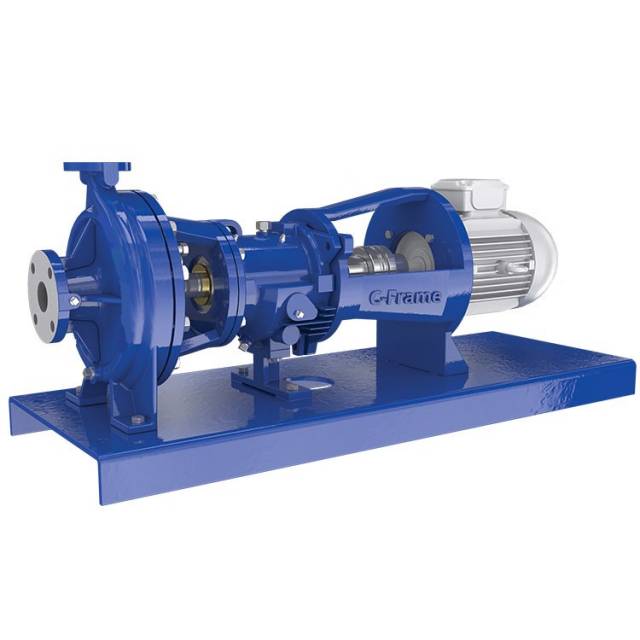

• C-Frame motor adapter
• Different baseplate mounting systems
• Sealing
  • Large taper bore with flow modifiers
  • Standard large and small bore
• Cooling coil to maintain proper oil temperature in hot applications

CONSTRUCTION MATERIALS

Materials in stock:

• DI / SST
• DI / Duplex
• SST / SST
• Duplex / Duplex

Special materials:

• Alloy 20
• Hastelloy B and C
• Zirconium
• Titanium

*Other materials on request*
