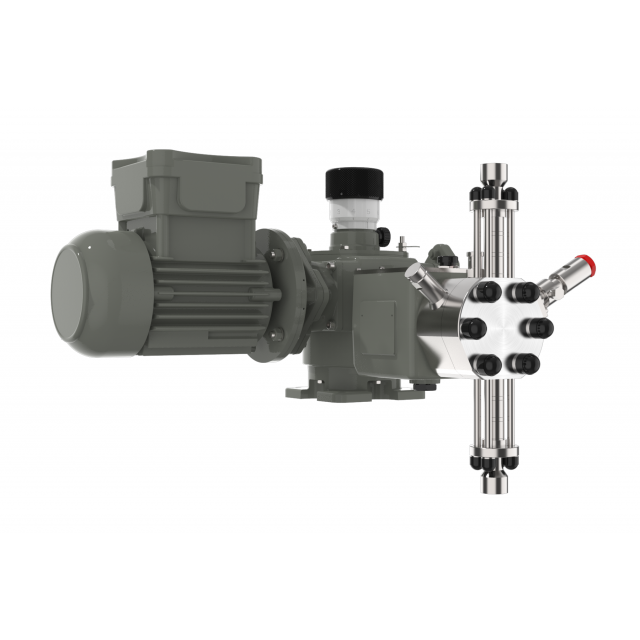

NEXA - Hydraulic Double-Diaphragm Heads
- Hydraulic oil-operated diaphragms
- Double oil for hydraulics and mechanism lubrication ensuring 100% chemical tightness and operational safety for higher reliability, dosing accuracy and application flexibility
- Preformed PTFE diaphragms as standard, for an excellent chemical compatibility and increased compactness allowing an outstanding level of efficiency
- Sealed design for metering hazardous fluids such as toxic or corrosive solutions and protection against external contamination
- Mechanical replenishment system maintains a constant level of the hydraulic fluid, thereby guaranteeing maximum precision and repeatability and enabling diaphragms deformation control for extended life
- Standard wetted parts include 316L stainless steel, PP and PVDF, with other materials available upon request
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
B Type - Max Pressure 450 barg
| Head Size | Flow Rate Max [l/h] | Fluid Temperature [°C] | Viscosity [cPs] | Material |
| AH | 0.7 | -20 / 120 | 500 | 316L SS |
| B2 | 14 | -20 / 120 | 500 | 316L SS |
| C2 | 103 | -20 / 120 | 500 | 316L SS |
| D2 | 400 | -20 / 120 | 500 | 316L SS |
| E2 | 1000 | -20 / 120 | 500 | 316L SS |
| F2 | 1200 | -20 / 120 | 500 | 316L SS |
H Type - Max Pressure 200 barg
| Head Size | Flow Rate Max [l/h] | Fluid Temperature [°C] | Viscosity [cPs] | Material |
| A | 2.45 | -20 / 120 | 1000 | 316L SS |
| B | 17 | -20 / 120 | 1000 | 316L SS |
| C | 110 | -20 / 120 | 1000 | 316L SS |
| C (LT) | 110 | -40 / 70 | 1000 | 316L SS |
| D1 | 162 | -20 / 120 | 1000 | 316L SS |
| D2 | 320 | -20 / 120 | 1000 | 316L SS |
| E2 | 1500 | -20 /120 | 500 | 316L SS |
| F2 | 2000 | -20 /120 | 500 | 316L SS |
T Type - Max Pressure 120 barg
| Head Size | Flow Rate Max [l/h] | Fluid Temperature [°C] | Viscosity [cPs] | Material |
| A | 8,6 | -20 / 120 | 1000 | 316L SS |
| B | 22,8 | -20 / 120 | 1000 | 316L SS |
| C | 136 | -20 / 120 | 1000 | 316L SS |
| C (LT) | 136 | -40 / 70 | 1000 | 316L SS |
| D1 | 197 | -20 / 120 | 1000 | 316L SS |
| D2 | 350 | -20 / 120 | 1000 | 316L SS |
| E2 | 1650 | -20 / 120 | 1000 | 316L SS |
| F2 | 2350 | -20 / 120 | 500 | 316L SS |
| G2 | 5700 | -20 / 120 | 500 | 316L SS |
| H2 | 6800 | - 20 / 120 | 500 | 316L SS |
Y Type - Max Pressure 40 barg
| Head Size | Flow Rate Max [l/h] | Fluid Temperature [°C] | Viscosity [cPs] | Material |
| A | 11,3 | -20 / 120 | 1000 | 316L SS |
| B | 28,3 | -20 / 120 | 1000 | 316L SS |
| C | 142 | -20 / 120 | 1000 | 316L SS |
| D1 | 220 | -20 / 120 | 1000 | 316L SS |
| D2 | 375 | -20 / 120 | 1000 | 316L SS |
| E1 | 709 | -20 / 120 | 1000 | 316L SS |
| E2 | 1800 | -20 / 120 | 1000 | 316L SS |
| F | 3100 | -20 / 120 | 1000 | 316L SS |
| G | 3891 | -20 / 120 | 500 | 316L SS |
| H | 6883 | -20 / 120 | 500 | 316L SS |
| I | 9370 | -20 / 120 | 500 | 316L SS |
Y Type - Max Pressure 20 barg for plastic head
| Head Size | Flow Rate Max [l/h] | Fluid Temperature [°C] | Viscosity [cPs] | Material |
| A | 11,3 | -10 / 65 | 1000 | PP-PVDF |
| B | 28,3 | -10 / 65 | 1000 | PP-PVDF |
| C | 142 | -10 / 65 | 1000 | PP-PVDF |
| D1 | 220 | -10 / 65 | 1000 | PP-PVDF |
| D2 | 375 | -10 / 65 | 1000 | PP-PVDF |
| E1 | 709 | -10 / 65 | 1000 | PP-PVDF |
| E2 | 1800 | -10 / 65 | 1000 | PP-PVDF |
| F | 3100 | -10 / 65 | 500 | PP-PVDF |
| G | 3891 | -10 / 65 | 500 | PP-PVDF |
| H | 6883 | -5 /50 | 500 | PP-PVDF |
These are limit values, please state actual conditions with enquiry.
Diaphragm rupture detector available in multiple options:
- Exakta standard local visual
- Local visual via pressure gauge
- Pressure switch (any make, model or case material and signal type: analogue 4 – 20 mA, digital, HART protocol)
- Pressure transmitter (any make, case material and signal type: analogue 4 – 20 mA, digital, HART protocol)
