API 610 & Process Pumps
API 610 Horizontal Single Stage Process Pump
Enquiry Item
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.

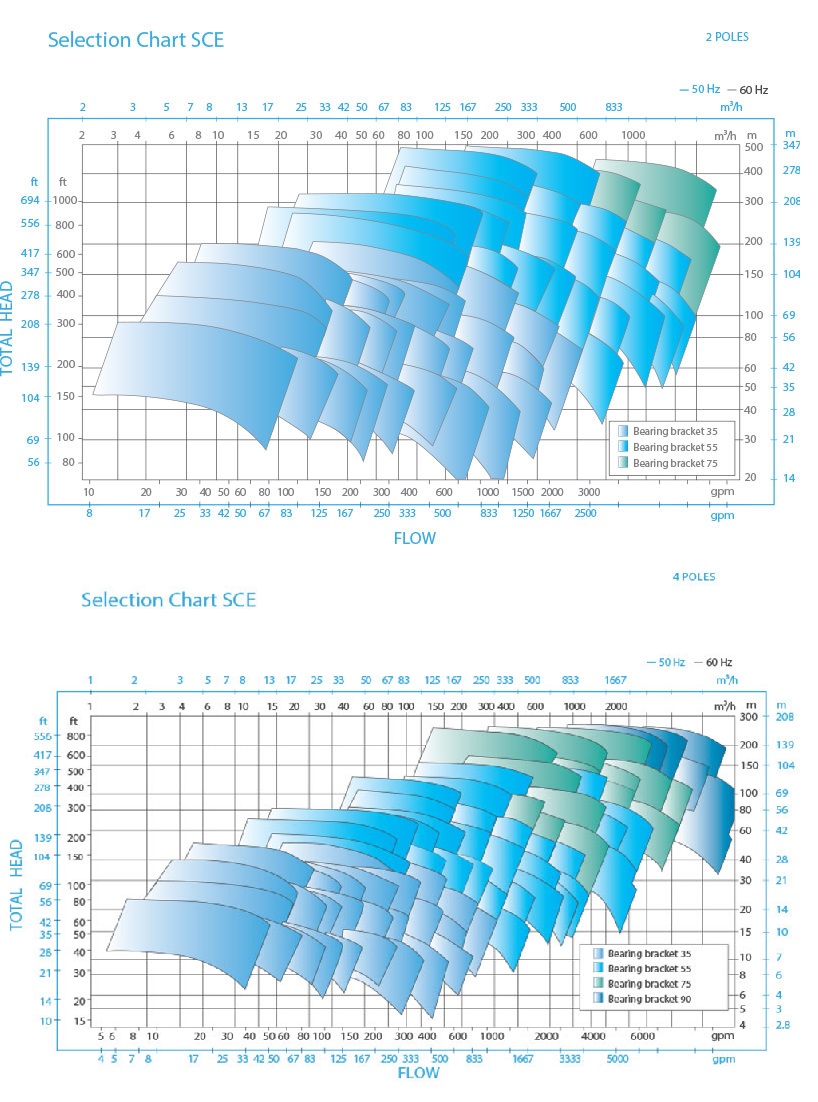

Operation limits
SPECIFICATIONS
- Radially split, centerline supported, single stage centrifugal pump
- Single or double volute depending on size
- Single suction, enclosed impeller
- Clockwise rotation viewed from the driver end, hydraulically balanced
- Thrust compensation by balance holes
- End-Top nozzle arrangement
- Centerline discharge nozzle
CONSTRUCTION MATERIALS
- Materials of construction per API 610
Other materials on request.
DESIGN FEATURES
Heavy-duty process design according to API 610 latest edition (OH2 type)
- Designed for continuous duty with over 130 hydraulic combinations available
- Back pull-out design for ease of maintenance
- Oil ring lubrication (other methods available)
- Replaceable front and back wear rings for casing and impeller
- Special design for abrasive liquids available
- Low temperature design on request
- Inducers for low NPSH available
- Fan and water cooling are available
- Coke crusher design available for heater charge services
- Jacketed casings available for fly ash and similar services
