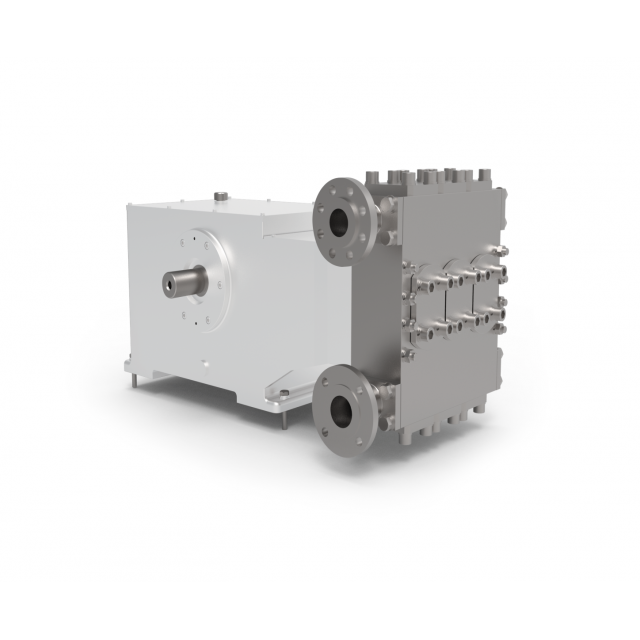

Triplex Series
3C 80
Enquiry Item
| Fluid Temperature [°C] | -20 / 200 |
|---|---|
| Stroke Length [mm] | 80 |
| Thrust Max [kN] | 26 |
| Motor Power Range (kW) | 9.2 - 55 |
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
| Plunger Diameter [mm] | Pressure Max [barg] | Flow Rate Max [m3/H] |
| 25 | 530 | 2.01 |
| 30 | 368 | 2.90 |
| 35 | 270 | 3.95 |
| 40 | 207 | 5.16 |
| 50 | 132 | 8.06 |
| 55 | 109 | 9.75 |
| 60 | 92 | 11.60 |
| 65 | 78 | 13.62 |
| 70 | 68 | 15.79 |
| 75 | 59 | 18.13 |
| 80 | 52 | 20.63 |
These are limit values, please state actual conditions with enquiry.
