ISO Standard Pumps

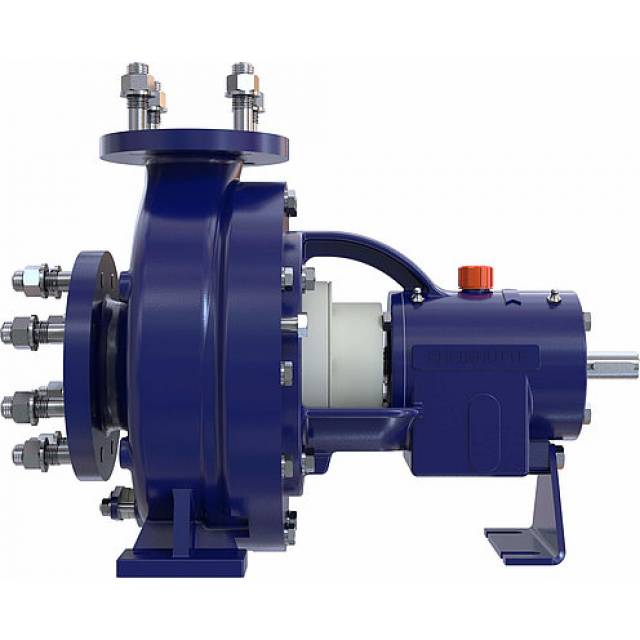

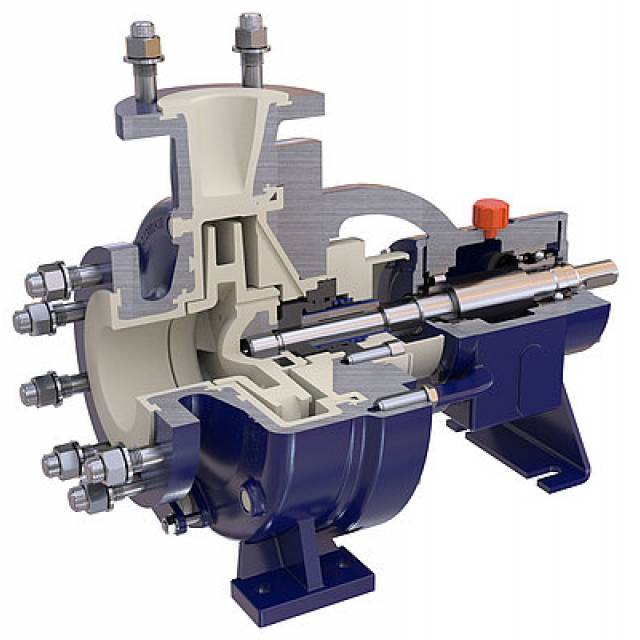

Chemical Pump With PFA Lining (FNP)
Enquiry Item
- Design : Horizontal cetrifugal pump
- Material : Plastics
- Size : DN 25 - DN 80
- Impeller : Closed
- Delivery rate : Qmax. = 70 m3/h
- Delivery head : Hmax. = 95 m
- Temperature : -30 °C to 190 °C
- Nominal Pressure : 16 bar
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Norm
ISO 5199, ISO 2858, EN 22858
Type
Horizontal, single-stage
Construction
Back-pull-out design according to ISO 2858
Casing design
Single volute casing
Impeller
Closed
Bearing lubrication
Grease or oil lubrication
Installation versions
Base frame welded or base plate cast
Ambient temperature
-20°C to 60°C
Solid content limit value
approx. 5 %
Suitable for virtually universally use in the chemical and pharmaceutical industry, petrochemicals and general processing technology.
- Chlor-Alkali Electrolysis
- Steel and Stainless steel pickles
- Chemical industry
- Sea water
- Pharmaceutical industry
- Petrochemistry
- General process engineering
- Perfluoralkoxi PFA
- Drain of volute casing
- Temperature and vibration monitoring
- Flange connections according to international standards
- Thermosyphon system
- Pump accessories
