Firefighting Pumps

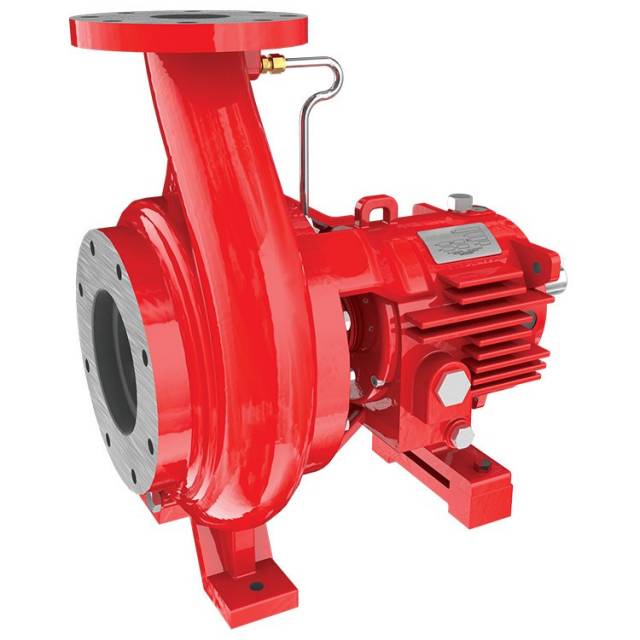

ANSI End Suction Horizontal Fire Pump
Enquiry Item
Single stage, end suction firefighting pumps. NFPA-20 design. UL Listed and FM Approved. Also available as Jockey Pumps.
Operation Limits
Applications Commercial, municipal and residential high-rise buildings, Large industrial premises and storage warehouses, Offshore and remote facilities, Airports, Power stations, Hospitals
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
CHARACTERISTICS
- Single stage horizontal centrifugal pump
- Available with electric or diesel drive
- The heavy-duty power frame of the CPP incorporates additional oil cooling and heat dissipation
- Robust 316SS sleeved shaft (as standard) for extended seal life
- Vertical discharge on the center line
- Enclosed impeller design ensures maximum efficiency
- Standard Inpro/Seal® bearing isolators
- Double row thrust bearing that provides minimal shaft end play for extended mechanical seal life
BENEFITS
- Back pull-out design simplifies maintenance and reduces problems associated with pipe strain
Also available as a Jockey Pump.
DESIGN FEATURES
- NFPA-20 design
- UL-448 listed
- FM-1319 approved
Special designs available on request
CONSTRUCTION MATERIALS
Standard materials:
- Cast iron
- Ductrile iron
- Carbon steel
Metallurgies available for sea/brackish water applications and harsh environments:
- Stainless steel
- Duplex and Super Duplex
- Nickel-Aluminum-Bronze
Special materials available on request
FIRE MARKET APPLICATIONS
- Sprinkler systems
- Hydrant systems
- Water curtains
