FDA & Hygienic Pump

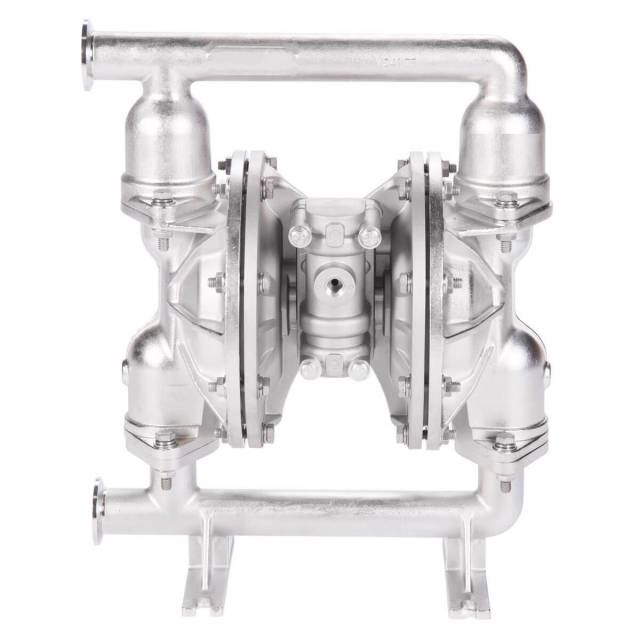

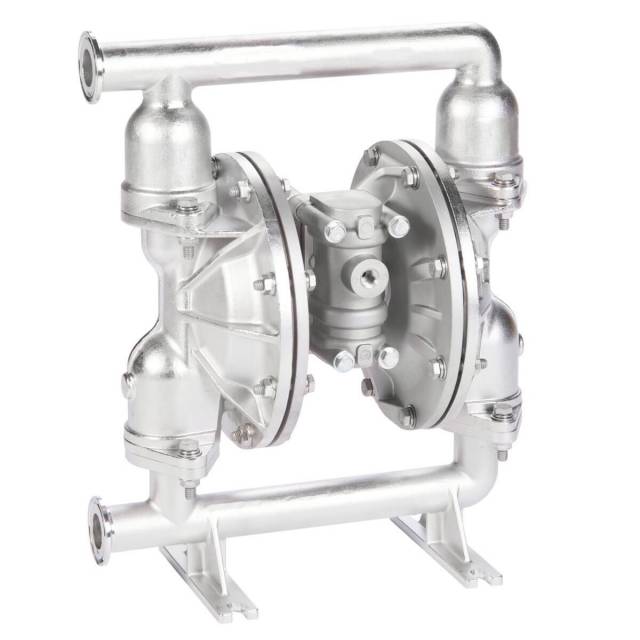

F100 1 Inch FDA Series
Enquiry Item
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
| PHYSICAL SPECIFICATIONS | ||
|---|---|---|
| Liquid Port Size: | 1-1/2 in. | |
| Liquid Connection Size: | Tri-Clamp | |
| Standard Suction Port: | Right | |
| Standard Discharge Port: | Right | |
| Air Inlet Connection Size: | 1/4 in. FNPT | |
| Air Exhaust Connection Size: | 3/4 in. | |
| Weight: | 38 lbs (17 kg) | |
| CONSTRUCTION | |
|---|---|
| Wet End: | Passivated Stainless Steel |
| Air End: | Aluminum |
| Diaphragm: | Hytrel®, PTFE, Santoprene® |
| Valve: | Buna-N, PTFE, Santoprene® |
| Seat: | Stainless Steel |
| O-Rings: | Buna-N, EPDM, PTFE |
| Hardware: | Stainless Steel |
| Muffler: | Metal, Plastic |
Performance

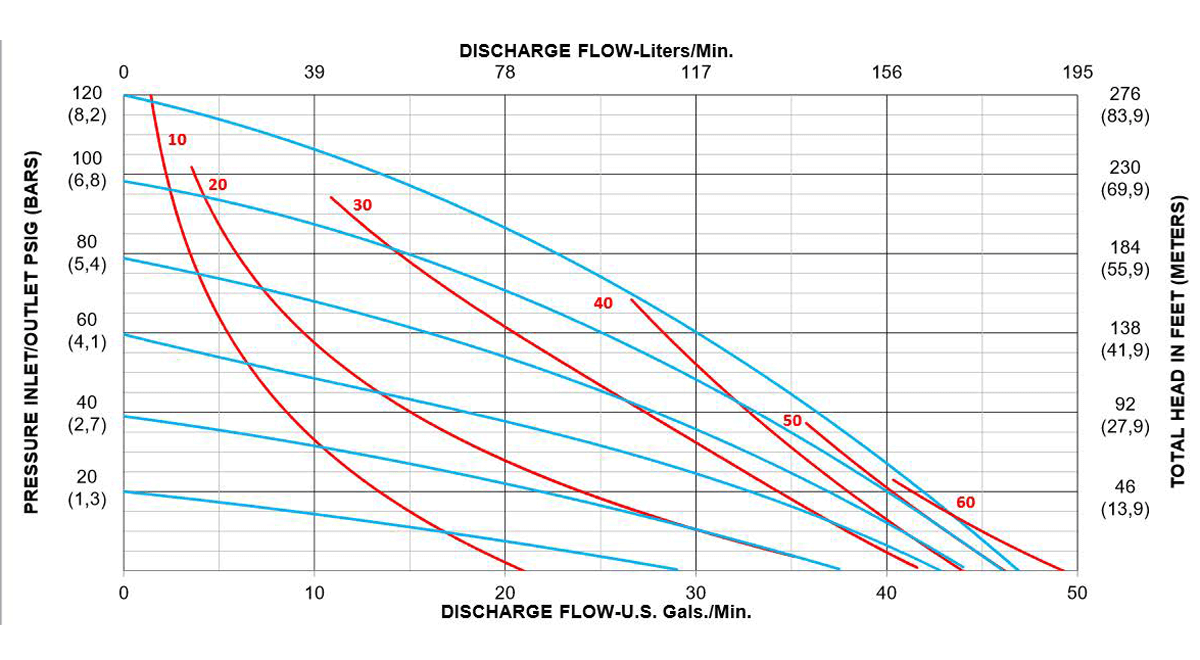

Performance Curve
Note: Additional performance curves can be found in the download section.
| PERFORMANCE | |
|---|---|
| Max Flow: | 48 gpm (182 lpm) |
| Max Air Pressure: | 120 psi (8.2 bar) |
| Suction Lift (Dry): | 17 ft-H2O (5.2 m-H2O) |
| Suction Lift (Wet): | 30 ft-H2O (9.1 m-H2O) |
| Max Solids: | 1/4 in. (6.4 mm) |
