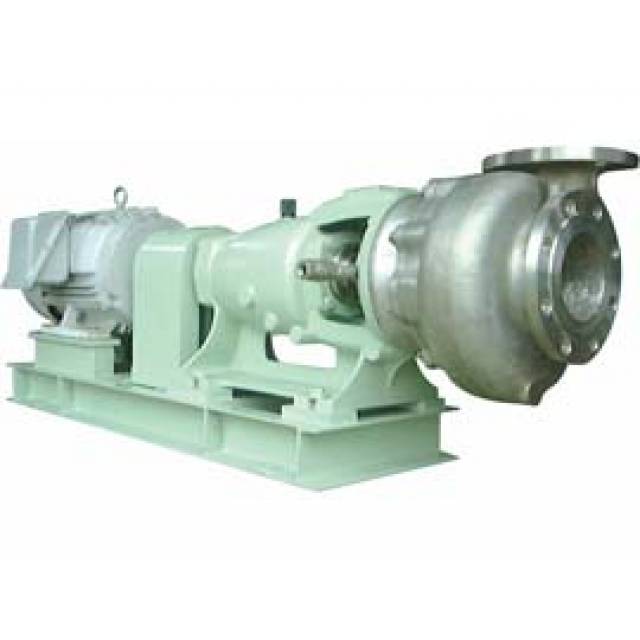

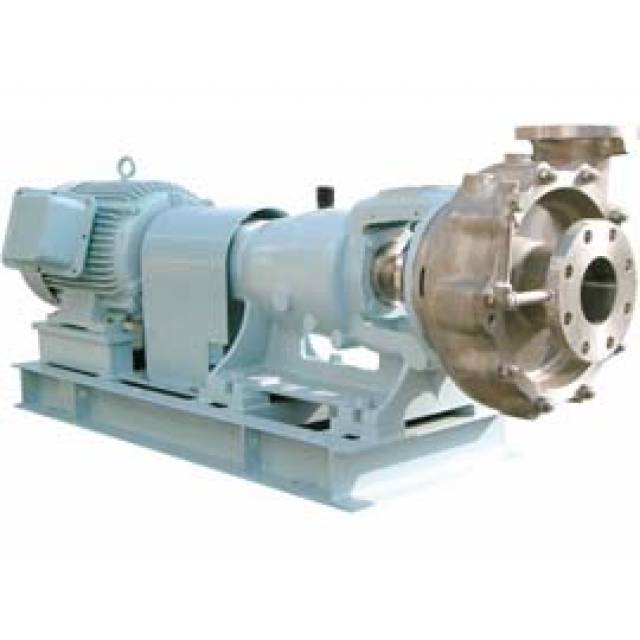

Non-Clog Pump (BNS/BNF/BNC/BALS)
- BNS/BNF is designed for liquid containing foreign (solid) object.
- Capable to handle solids up to 1/3 size of suction bore (50∼250mm).
- Available in SS and Cast lron
- Small sized rigid type BNS/BNF has excellent reliability and durability under severe condition.
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Material
Stainless Steel SCS13/SCS14/SCS16
Cast Iron FC200
Ductile Iron FCD450 (For HC Series Pumps)For cast-iron material the pump model is BNF.
Other specific materials.
SCS23, Nickel Alloy, Hastelloy, Duplex Stainless Steel
Temperature
-20ºC∼170ºC
-5ºC∼120ºC in case of Cast & Ductile Iron
Shaft Seal
Gland packing Self and external flushing type
Mechanical seal
Single mechanical seal
Double Mechanical Seal
Additional Special Mechanical Seal may be installed on request
Bearing
Ball bearing (Oil bath system).

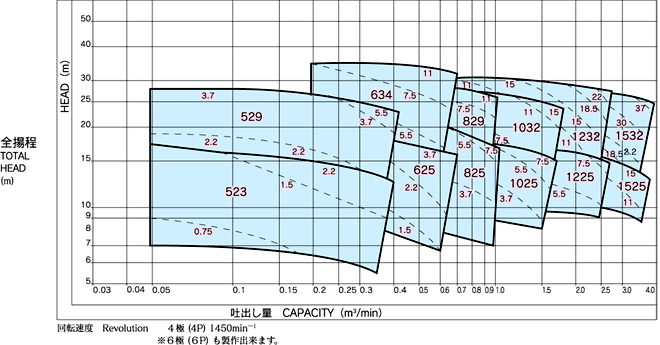

Pump selection tables are based on pumping liquid with specific gravity of 1.0 and viscosity of 1.0mPa·s.
Motor output (kW) is shown with dotted lines
