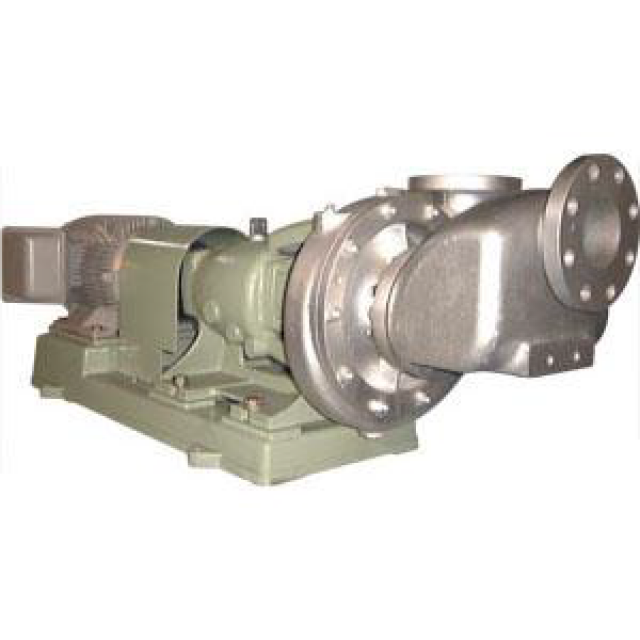

Low NPSH Self-Priming Pump (MSPF/MSPG)
- Unique impeller and Volute casing construction
- High efficiency and advanced priming performance.
- Non-return valveless construction
- Pump construction makes solvent degreasing treatment easy.
- Eliminates foot valve and/or check valve
- Up to 80ºC pumping temperature.
- Suitable for liquid contains Slurry.
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Materials
Stainless Steel SCS13/SCS14/SCS16.
Cast Iron FC200.
Ductile Iron FCD450 (For HC Series Pumps).
For cast-iron material the pump model is MSPF or MSPGF (However, the impeller is SCS13).
Other specific materials :
SCS23, Nickel Alloy, Hastelloy, Duplex Stainless Steel, Titanium.
Temperature
0ºC∼80ºC
Shaft Seal
Gland packing.
Self and external flushing type.
Single mechanical seal.
Double Mechanical Seal.
Special Mechanical Seal may be installed on request.
Bearing
Ball Bearing (Oil bath system).

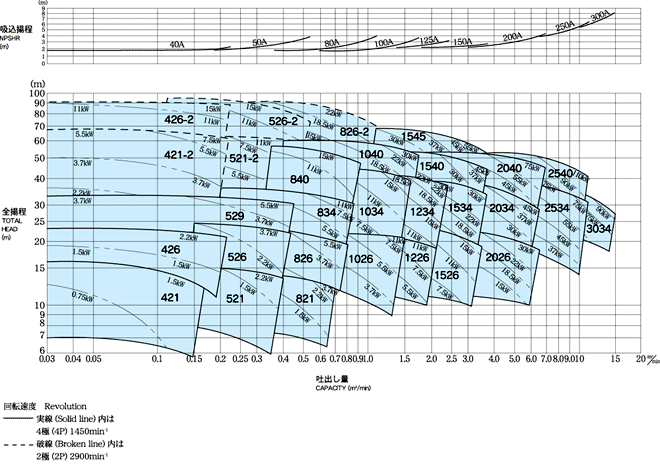

Pump selection tables are based on pumping liquid with specific gravity of 1.0 and viscosity of 1.0mPa·s.
Motor output (kW) is shown with dotted lines.
