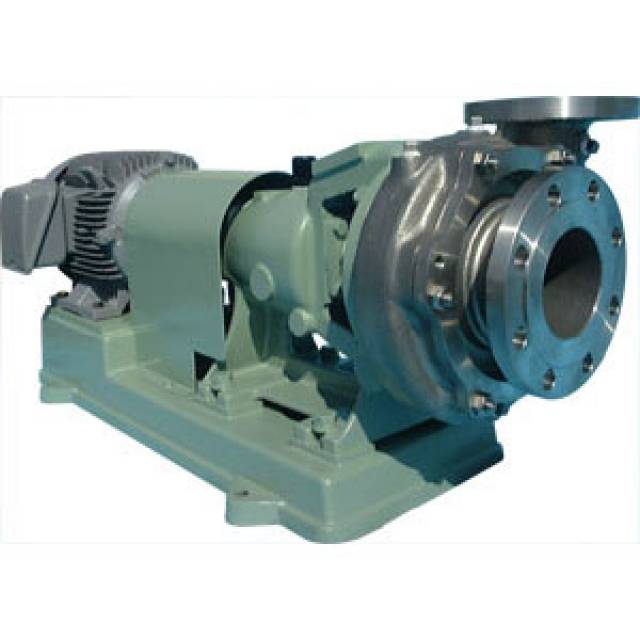

Horizontal Volute Pump (HCS/HC)
- Small, rigid type with proven reliability and durability.
- Casting, materials and manufacturing strictly controlled and certified according to international standards ANSI, ISO
- Full interchangeability of parts.
- High efficiency over a wide operating range with excellent suction performance.
- Many years of proven performance and experiences with a wide range of applications.
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Materials
Stainless Steel SCS13/SCS14/SCS16
Cast Iron FC200
Ductile Iron FCD450 (For HC Series Pumps)
Other specific materials:
SCS23, Nickel Alloy, Hastelloy, Duplex Stainless Steel, Titanium, Worthite
Stainless cast iron SCS13 and SCS14 are available as the standard type
Max. Pressure
Stainless steel: 1MPa
Cast Iron: 0.7MPa
Temperature
-20ºC∼170ºC
-5ºC∼120ºC in case of Cast & Ductile Iron
Shaft Seal
Gland packing.
Self and external flushing type.
Mechanical seal.
Single mechanical seal
Double Mechanical Seal.
Single Mechanical Seal and Gland packing (Oil Seal) Combination.
Additional Special Mechanical Seal may be installed on request.
Bearing
Ball bearing (Oil bath system)
Water jacketed bearing housing is available when temperature exceeds 120ºC.
Additional Features
Steam jackets are available for both sides of casing to prevent pumping liquid from solidifying.
Possibility to change and adapt the directions of exhaust pipes upon request.

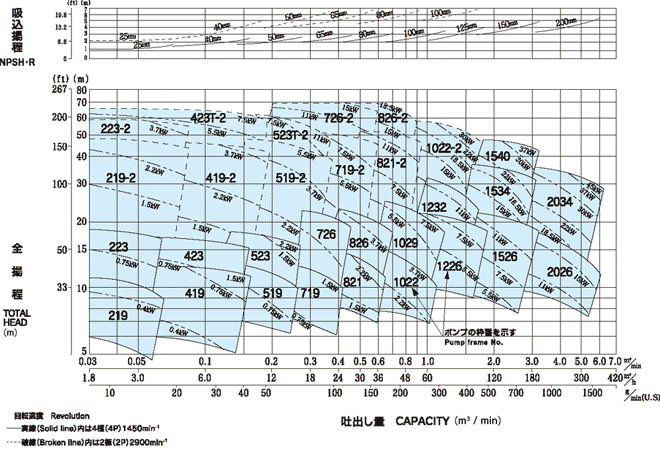

Pump selection tables are based on pumping liquid with specific gravity of 1.0 and viscosity of 1.0mPa·s.
Motor output (kW) is shown with dotted lines
