Horizontal Low NPSH Volute Pump (LNPS/LNPF)
Enquiry Item
- Ensures the lowest NPSH thus tougher for cavitation to occur.
- Well handling of 5∼10% AlR or GAS content liquids.
- Suitable for extremely low NPSH applications.
- LNPS/LNPF has excellent reliability and durability under severe condition.
Applications : - Vacuum Evaporater, Crystallizer, Liquified gas transfer, Dyeing Machine, Boiler Feeding, Condenser Drainage, Chemical Reactor, Desalination Plant, Foodstuffs Engineering.
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Materials
Stainless Steel SCS13/SCS14/SCS16
Cast Iron FC200
Ductile Iron FCD450 (For HC Series Pumps)
Other specific materials :
SCS23, Nickel Alloy, Hastelloy, Duplex SS, Titanium
Temperature
- 20ºC∼170ºC
- 5ºC∼120ºC in case of Cast & Ductile Iron.
Shaft Seal
Gland Packing
Self and external flushing type
Mechanical Seal :
- Single Mechanical Seal
-Double Mechanical Seal
-Special Mechanical Seal may be installed upon request.
Bearing
Ball Bearing (oil bath system)
Water jacketed bearing housing is available.

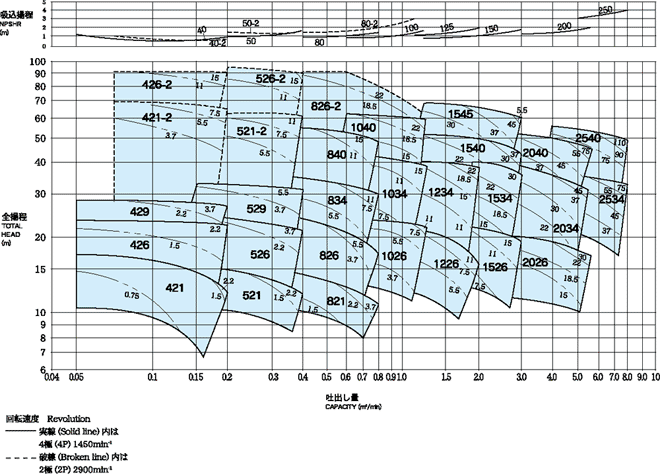

Pump selection tables are based on pumping liquid with specific gravity of 1.0 and viscosity of 1.0mPa·s.
Motor output (kW) is shown with dotted lines.
