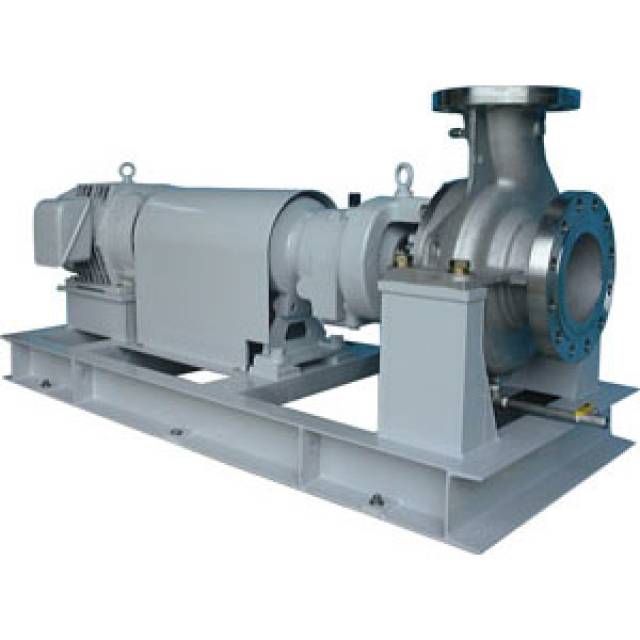

Centerline support volute pump (UGS/UGF)
Enquiry Item
- Back-pull out design for easy maintenance.
- High efficiency, suitable for low NPSH
- Interchangeability of parts
- Max. temperature 350ºC(662ºF).
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Materials
Stainless Steel SCS13/SCS14/SCS16.
Cast Iron FC200.
Ductile Iron FCD450 (For HC Series Pumps).
For cast-iron material the pump model is UGF.
Other specific materials.
SCS23, Nickel Alloy, Hastelloy, Duplex Stainless Steel, Titanium
Temperature
-50ºC∼280ºC
Max. Pressure
Stainless steel: 7.5MPa
Cast Iron: 3.0MPa
Shaft Seal
Mechanical seal (Balance type).
When pumping temperature exceeds 80ºC, cooler shall be provided.
Bearing
Ball bearing (Oil bath system).
Water jacketed bearing housing is available when temperature exceeds 120ºC.
Additional Features
Center support type.
