JIS Standard Pumps

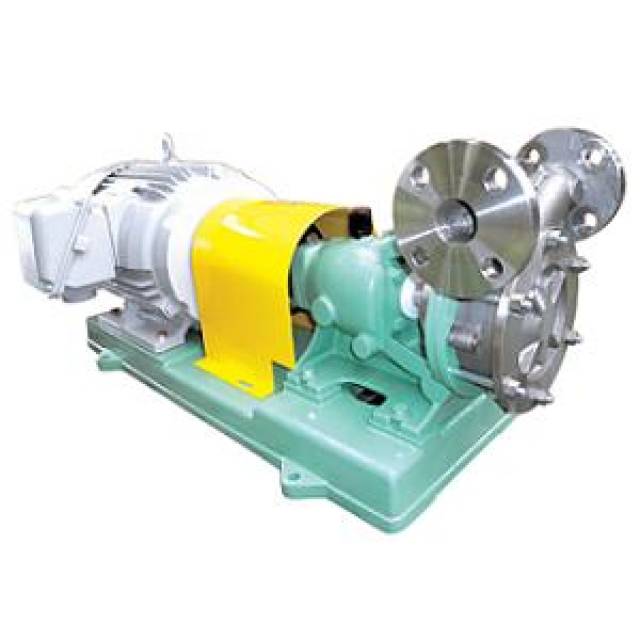

Cascade Pumps (FRS/FR)
Enquiry Item
- Pump has small capacity and high head by one impeller.
- Easy access to pump interior by removing the suction cover.
- Suitable for wide range of liquid due to its SS materials.
- High efficiency leading to cost savings.
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Materials
Stainless Steel SCS13/SCS14/SCS16
Cast Iron FC200
Ductile Iron FCD450 (For HC Series Pumps)
Temperature
-20ºC∼80ºC
-5ºC∼80ºC in case of Cast & Ductile Iron
Shaft Seal
Gland packing
Self and external flushing type
Single mechanical seal.
Include balanced and unbalanced types.
Inside and outside types.
Double Mechanical Seal
Special Mechanical Seal may be installed on request.
Bearing
Ball bearing (Oil bath system).

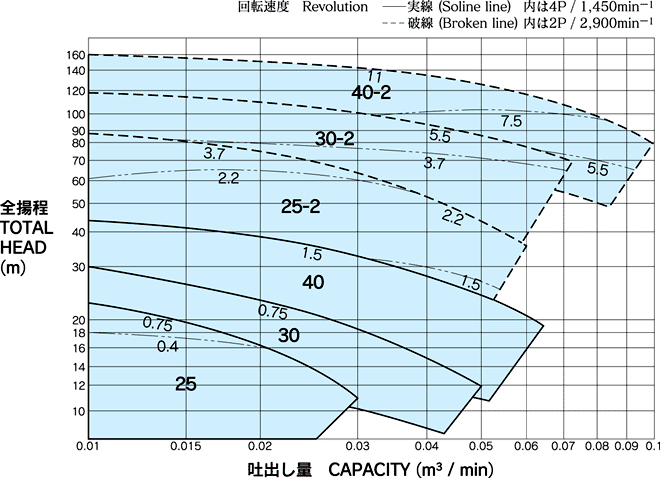

Pump selection tables are based on pumping liquid with specific gravity of 1.0 and viscosity of 1.0mPa·s.
Motor output (kW) is shown with dotted lines.
