ISO Standard Pumps

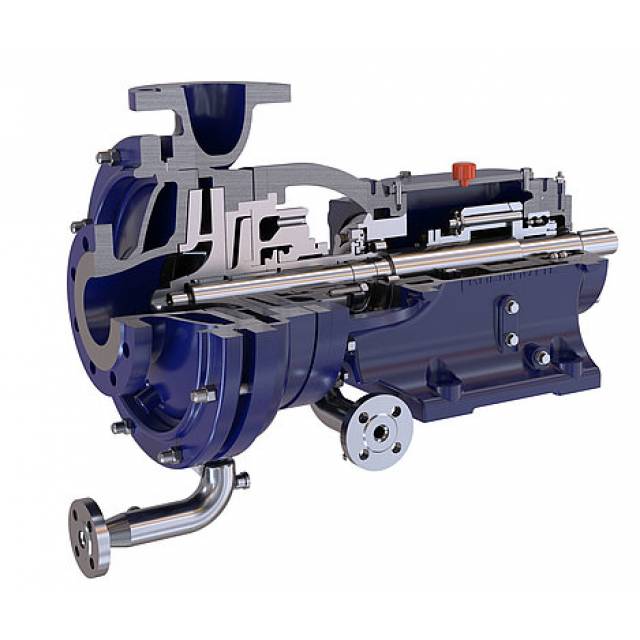

Chemical Centrifugal Pump (RCE)
Enquiry Item
Design Features
- Design : Horizontal cetrifugal pump
- Material : Metal
- Size : DN 32 - DN 300
- Impeller : Closed or open
- Qmax. = 1.200 m3/h
- Hmax. = 180 m
- Temperature : -40 °C to 450 °C
- Nominal Pressure : 16 bar
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Norm
ISO 5199
Type
Horizontal, single-stage
Casing design
Single or double volute casing
Impeller
Closed or open
Bearing lubrication
Grease or oil lubrication
Installation versions
Base plate, base frame or stilt mounting
Ambient temperature
-20°C to 60°C
Solid content limit value
approx. 30 %
Heavy-duty applications in chemically aggressive and abrasive media with or without a solids content, in chemical processing technology, the primary materials industry and other areas of industry. Typical applications are molten salt, pitch, tar, sulphur, etc.
- Fertilizer (DAP/NPK/TSP/MAP)
- Molten sulphur
- Ammonium nitrate
- Phosphoric acid
- Nitric acid
- Mud
- Pitch and tar
- Alloy C1 (2.4686)
- Ferritic cast steel 1.0619
- High Alloy Cast Steel V5700 (0.9650)
- Ferritic stainless steel 1.4136S
- Austenitic stainless steel 1.4306S
- Austenitic stainless steel 1.4361
- Austenitic stainless steel 1.4408
- Semi-austenitic 1.4463
- Duplex 1.4517
- Fully austenitic special stainless steel R3020
- High austenitic stainless steel 1.4529S
- Higher austenitic stainless steel 1.4652S
- Inducer
- Drain of volute casing
- Flushing in different versions
- Temperature and vibration monitoring
- Flange connections according to international standards
- Thermosyphon system
- Quenching system
- Pump accessories
